Eaton Crouse-Hinds series Myers through bulkhead fitting

CROUSE-HINDS
SERIES


Commercial products


Mvers hubs
The broadest, most complete offering for terminating Rigid/MC to a box or enclosure
Powering Business Worldwide

The original!
Often imitated, never duplicated! Available in a wide range of sizes, materials and ratings to meet virtually any customer application!Myers" is the industry leader others have attempted to duplicate but is unparalleled in selection, capability and dependability. In addition to being the most recognized brand of hub on the market, Myers offers larger stainless hub trade sizes, aluminum hubs, ATEX approved hubs, cap-offs, drains, and more!

Myers hubs design features

Grounding screw ● For added safety

Precision machine cut threads · Positive fit and simple installaton

r

No welding

· Unique serrations on both nut and hub bite into metal assuring a positive eectrical ground. (UL approved for use with service entrance conduit

Available in trade sizes (3/" through 6"

Ground hub

Hub Basic Scru-Tite

Combines all of the features of the Hub Basic Scru-Tite·plus the additional feature of the grounding screw on the locknut.

Hubs are ideal for general use with rigid conduit.Provides positive seal and

electrical ground.

Metric to NPT adapter Drain plugs Used to convert a threaded metric entry to a NPT entry.

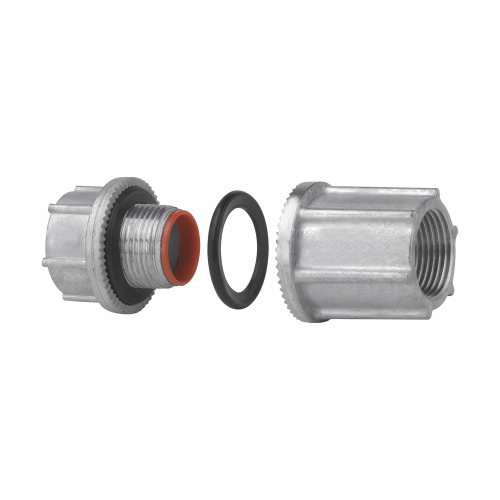

Through-bulkhead fitting Hubs are the perfect method for installing hubs on cast boxes or through thicker walls.

Vibration-proof

了

· Strong, oversize nut with radial serrationsassuresfush instaltion and pasitive grounding

Posi-lok insulated throat

N

___

· Cannotcomeout, standard insizes

from 1/2"through 4"

Captive o-ring gasket

：。

· Impervious to corrosive moisture and petroleum products.Gasket assures positive water and dust-tight instalations

Stainless steel now ated for -55℃C to 180°C

Available in trade sizes

Available in trade sizes

'" through 6"

'" through 4"

ATEX rated hub

Hub is listed for use in hazardous (classified) locations to IECExATEX certifications. Ideal for global requirements and OEM's shipping material worldwide.

Cap-off

Designed to install in the bottom of an enclosure to drain any accumulated condensation.Available in aluminum or stainless steel

Designed to install in enclosure to provide environmental cap for unused entries or knockouts.

construction.

EATON'S CROUSE-HINDS

Myers hubsHub basic Scru-Tite NEMA 2, 3, 3R, 4, 4X, 12ZincUL File No. E-27258

Hub basic Scru-Tite NEMA 2, 3, 3R, 4, 4X, 12AluminumUL File No. E-27258

Ground hub NEMA 2, 3, 3R, 4, 4X, 12316 stainless steelUL File No. E-59509

Ground hub NEMA 2, 3, 3R, 4, 4X, 12ZincUL File No. E-59509

Ground hubNEMA 2, 3, 3R, 4, 4X, 12AluminumUL File No. E-59509

ATEX hazardous location hub with increased safety ground terminal NEMA 2, 3, 3R, 4, 4X; IP66Zinc

ATEX hazardous location hub with increased safety ground terminalNEMA 2, 3, 3R, 4, 4X; IP66316 stainless steel

Through-bulkhead fittingZincUL File No. E-27258

Cat. #STTB 1 ，STTB 2，STTB 3，STTB 4，STTB5，STTB 6，STTB7，STTB 8，STTB9，STTB 10

Through-bulkhead fittingAluminumUL File No. E-27258

STTBA 1 ， STTBA 2，STTBA 3，STTBA4 ，

Through-bulkhead fittingZinc without nipplesPackaged as two pieces unassembledUL File No. E-27258

Through-bulkhead fittingAluminum without nipplesPackaged as two pieces unasse

Metric to NPT adapterZinc

Metric to NPT adapter316 Stainless Steel

Non-hazardous drain plug316 stainless steelUL File No. E-23223

Non-hazardous drain plugAluminumUL File No. E-23223

Cap-offZincUL File No. E-23223

Cap-offAluminumUL File No. E-23223

Ground NutZincUL File No. E-59509

Ground NutAluminumUL File No. E-59509
